Concrete Frame Screw

Concrete Frame Screw – Product Introduction

Concrete Frame Screws are specialized high-strength anchoring fasteners engineered exclusively for fastening structural components to concrete, masonry, brick, and precast concrete frames. Featuring a hardened drill point, high-torque thread design, and anti-loosening structure, these screws are designed to penetrate concrete frames directly without pre-drilling (or with minimal pre-drilling) and form a tight, secure bond with the base material. Crafted with high-grade alloy steel and precision heat treatment processes, they deliver exceptional tensile and shear strength, making them ideal for heavy-duty structural applications such as building frames, curtain walls, steel structures, and industrial equipment installation. Trusted by global contractors, construction companies, and structural engineers, these screws are recognized for their reliability, durability, and easy installation in harsh construction environments.

Core Advantages

Hardened Drill Point, Easy Penetration: Equipped with a high-hardness (HRC55-60) hardened drill point, specially ground to penetrate concrete, masonry, and precast concrete frames directly, eliminating the need for complex pre-drilling and reaming processes. The drill point design reduces drilling resistance, ensures precise positioning, and avoids concrete cracking during installation.
High-Strength Thread, Superior Anchoring Force: The precision-engineered high-torque thread features a unique pitch and cross-sectional design, which enhances friction and engagement with concrete particles, forming a tight, irreversible anchoring bond. Delivers excellent tensile and shear strength, ensuring long-term stability even under heavy loads and structural stress.
Anti-Loosening & Anti-Vibration Performance: Integrated with anti-loosening thread locking structure and corrosion-resistant sealing ring, the screws effectively resist loosening caused by structural vibration, temperature changes, and long-term use. Suitable for high-vibration environments such as industrial plants, bridges, and high-rise building frames.
Super High Strength & Durability: Made of 10.9/12.9-grade alloy steel or high-strength carbon steel, through quenching, tempering, and surface hardening treatment, the tensile strength reaches up to 1000MPa, and the surface hardness is HRC55-60. The screws are resistant to wear, impact, and deformation, ensuring long service life in harsh construction environments.

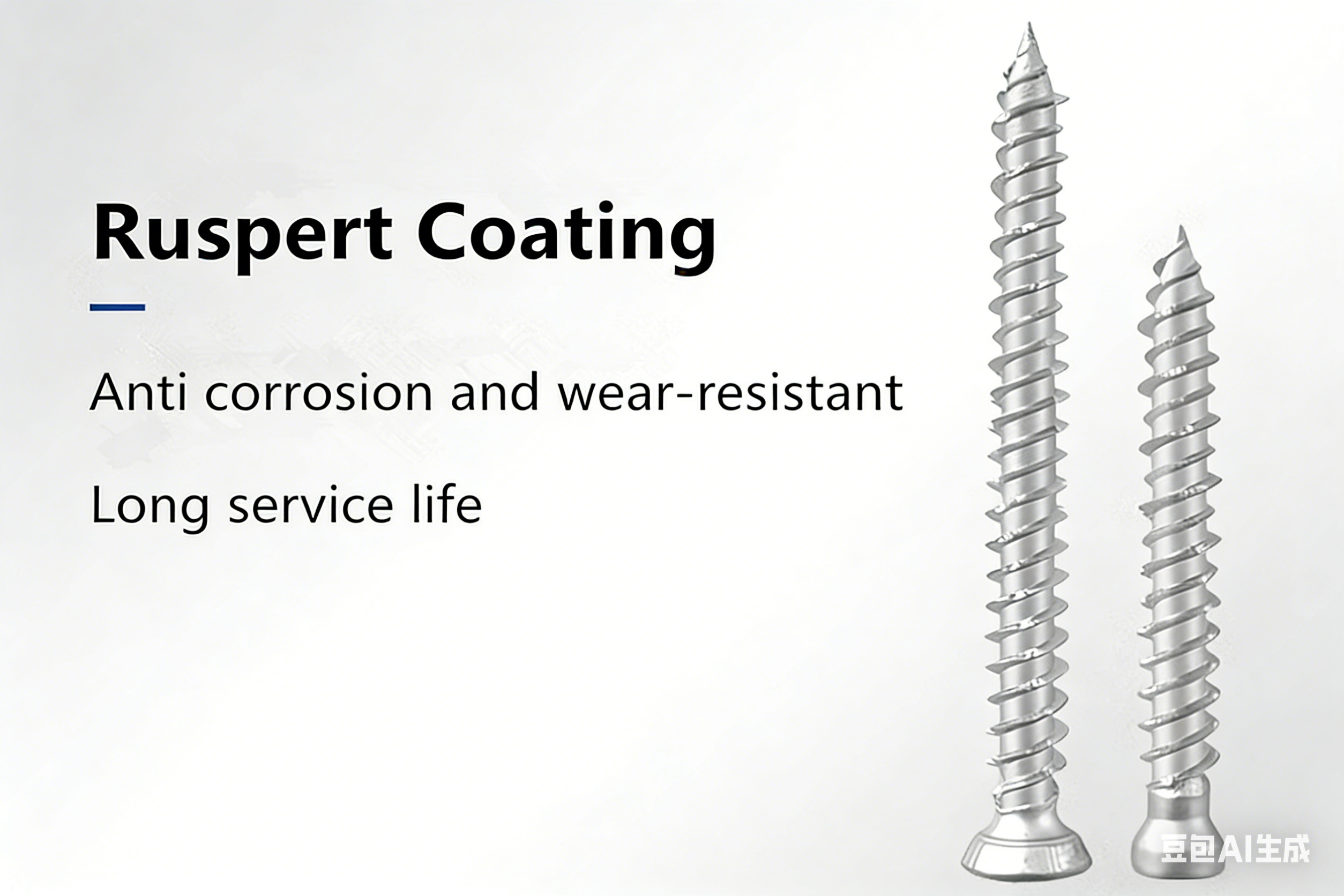

Weather & Corrosion Resistance: Available in professional surface treatments such as hot-dip galvanizing, Dacromet, and epoxy coating, which form a dense protective layer on the surface, effectively resisting rust, corrosion, and chemical erosion. Suitable for both indoor and outdoor concrete frame applications, including marine, coastal, and industrial corrosion-prone environments.

Product Classification & Application Scenarios

Screw Type	Thread & Drive Feature	Surface Treatment	Application Scenarios
High-Strength Concrete Frame Screws	Coarse thread, hex drive, hardened drill point, anti-loosening structure	Hot-Dip Galvanizing, Dacromet, Epoxy Coating	Building frames, steel structure anchoring, curtain wall installation, heavy-duty equipment fixing
Self-Drilling Concrete Frame Screws	Double thread, hex socket drive, ultra-hard drill point, self-tapping	Zinc-Nickel Plating, Black Oxide, Chromium Plating	Precast concrete frames, masonry walls, brick structures, quick installation projects
Stainless Steel Concrete Frame Screws	Fine thread, hex drive, corrosion-resistant drill point, sealing ring	304/316 Stainless Steel, Passivation, Titanium Coating	Marine construction, coastal building frames, food factories, corrosion-prone concrete structures

Key Specifications & Parameters

Parameter	Standard Value	Optional Value	International Standard
Material	10.9-Grade Alloy Steel	12.9-Grade Alloy Steel, 304/316 Stainless Steel	ANSI B18.2.1, DIN 933, GB/T 10433-2002
Surface Treatment	Hot-Dip Galvanizing, Dacromet	Epoxy Coating, Zinc-Nickel Plating, Chromium Plating, Titanium Coating	Salt spray test ≥120h (galvanizing), ≥200h (Dacromet), ≥300h (stainless steel)
Drive Type	Hexagonal Drive (Standard)	Hex Socket Drive, Torx Hex Drive, Phillips-Hex Combined	High torque transmission, anti-slip, compatible with construction power tools
Head Type	Hex Washer Head (Integrated)	Countersunk Hex Head, Round Head with Washer, Thickened Hex Head	Integrated washer, wide bearing surface, even force distribution on concrete
Diameter	M8, M10, M12	M6, M14, M16, M18	Mainstream export specifications for concrete frame anchoring
Length	50mm, 60mm, 80mm, 100mm, 120mm	30mm-200mm	Customizable according to concrete thickness and anchoring depth requirements
Tensile Strength	≥1000MPa	≥1200MPa (12.9-Grade Alloy Steel Type)	Meets structural engineering heavy-duty anchoring requirements
Thread Type	Coarse Thread (Metric Coarse)	Double Thread, Self-Tapping Thread, Fine Thread	Enhanced anchoring force, suitable for different concrete densities

Comparison: Concrete Frame Screws vs Ordinary Hex Washer Head Screws

Comparison Item	Concrete Frame Screws	Ordinary Hex Washer Head Screws
Design Purpose	Specialized for concrete/masonry frame anchoring, high-strength structural fastening	General industrial fastening, suitable for metal/wood/plastic materials
Drill Point & Hardness	Ultra-hardened drill point (HRC55-60), designed for concrete penetration	Ordinary hardness point, cannot penetrate concrete, only for pre-threaded holes
Strength & Anchoring Force	Ultra-high tensile strength (≥1000MPa), strong anchoring force in concrete	General strength (≥800MPa), no anchoring effect in concrete, easy to loosen
Corrosion Resistance	High-grade surface treatment, strong corrosion resistance for outdoor/harsh environments	General corrosion resistance, suitable for indoor/ordinary industrial environments
Applicable Scenarios	Building frames, concrete structures, curtain walls, heavy-duty structural anchoring	Machinery assembly, electrical equipment, light-duty industrial fastening

Application Scope

Building construction: Anchoring of steel structures, curtain walls, aluminum alloy doors and windows to concrete frames, beams, and columns.
Industrial engineering: Fixing of heavy-duty industrial equipment, conveyor systems, and production lines to concrete foundations and frames.
Infrastructure projects: Bridge frames, tunnel supports, railway stations, and airport terminal concrete structure anchoring.
Precast concrete applications: Fastening of precast concrete components, wall panels, and floor slabs to concrete frames.
Marine & coastal construction: Anchoring of coastal building frames, marine platforms, and port facilities (stainless steel type).
Renovation & reconstruction: Structural reinforcement, equipment upgrading, and additional component fixing to existing concrete frames.
Special engineering: Nuclear power plants, chemical plants, and high-temperature industrial facilities (high-corrosion, high-strength type).

Why Choose Our Concrete Frame Screws?

Concrete-Specific Optimization: The hardened drill point, high-torque thread, and anti-loosening structure are exclusively optimized for concrete frame anchoring, ensuring easy penetration, strong anchoring force, and long-term stability.
Strict Quality Control: From raw material selection (high-grade alloy steel) to finished product delivery, we implement full-process quality monitoring, including hardness test, tensile test, and corrosion test, ensuring consistent size, uniform performance, and no defective products.
Customization Service: We provide OEM/ODM services, supporting customization of diameter, length, thread type, head type, surface treatment, and packaging to meet the personalized needs of global construction companies, contractors, and importers.
Export-Oriented Standards: Complies with international structural engineering standards, passes ISO9001 quality certification, with stable quality and competitive factory price, popular in Europe, America, the Middle East, and Southeast Asia construction markets.
Complete Supporting Services: Provide product test reports, quality certificates, and construction guidance documents, and provide timely after-sales support for any quality or use problems during construction.
