Collated Drywall Screws
Collated Drywall Screws – Product Introduction
Collated drywall screws are high-efficiency fasteners specifically designed for automated and rapid installation. Composed of high-quality drywall screws and high-strength plastic collation strips, each strip is standardly loaded with 50 screws. They can be used with collated screw guns for continuous feeding, greatly improving the construction efficiency of gypsum board, ceiling and partition wall installation. As a mainstream standard configuration for decoration and prefabricated buildings, they are widely favored by overseas engineering contractors, distributors and bulk purchasers.
Core Advantages
- 3-5 Times Efficiency Improvement: Continuous screw feeding eliminates the need for manual single-screw picking and placing, reducing bending and pauses, especially suitable for large-area engineering construction.
- No Jamming, No Slippage, Precise Positioning: The collation strip ensures accurate positioning and neat arrangement of screws, enabling smooth feeding, reducing waste screws and rework rates.
- Stable Fastening, No Panel Damage: Bugle head design allows flush countersinking, without damaging the gypsum board paper surface, facilitating putty leveling and surface finishing.
- High Strength and Durability: Made of C1022A medium carbon steel with quenching and tempering treatment, featuring deep thread engagement, strong tensile force and no easy breakage.
- Strong Versatility: Compatible with mainstream collated screw guns on the market, suitable for both wooden studs and light-gauge steel studs.
Product Classification & Application Scenarios
Screw Type | Thread Feature | Application Scenarios | Target Users |
|---|---|---|---|
Coarse Thread Collated Drywall Screws (Type W) | Single coarse thread, wide pitch | Fixing gypsum board to wooden studs, interior partition walls and ceilings | Residential decoration contractors, wooden structure building projects |
Fine Double Thread Collated Drywall Screws (Type S) | Double fine threads, high density | Fixing gypsum board to light-gauge steel studs (≤0.8mm), prefabricated buildings | Commercial building contractors, prefabricated housing manufacturers |

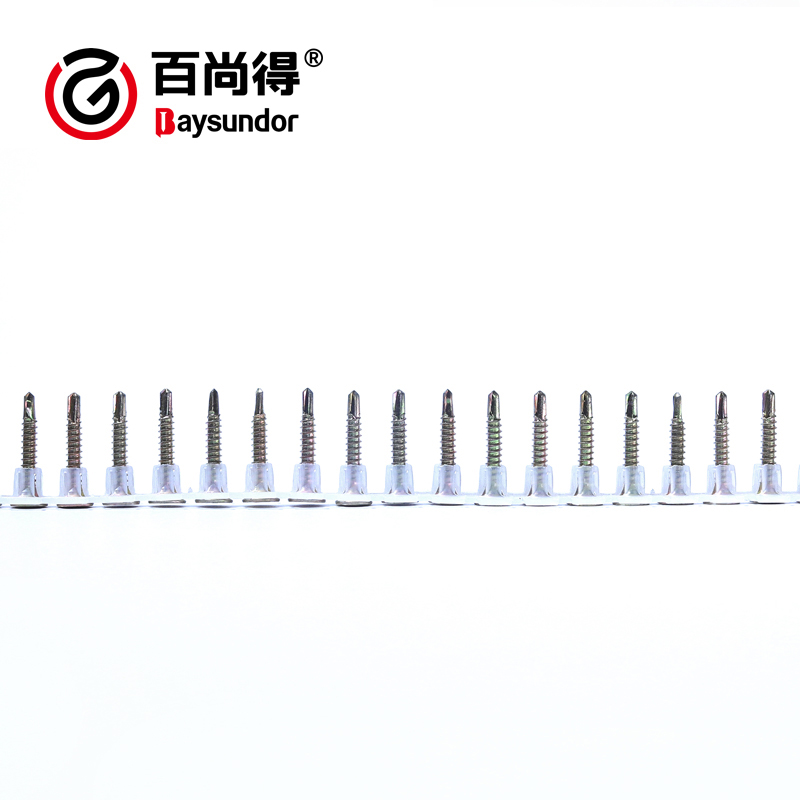

Self-Drilling Collated Drywall Screws (Type G) | With drill point, double fine threads | Fixing gypsum board to thick metal studs (0.8-2.3mm), steel structure substrates | Industrial plant contractors, steel structure engineering companies |
Key Specifications & Parameters
Parameter | Standard Value | Optional Value | Remarks |
|---|---|---|---|
Material | C1022A Medium Carbon Steel | Stainless Steel (304/316) | Meets ANSI B18.6.4 & DIN 18182 standards |
Surface Treatment | Phosphating (Grey), Blue-White Zinc | Color Zinc, Epoxy Coating, Dacromet | Anti-corrosion, suitable for different environments |
Diameter | #6(3.5mm), #8(4.2mm) | #7(3.9mm), #10(4.8mm) | Most popular for global export |
Length | 25mm(1″), 35mm(1-3/8″), 50mm(2″) | 16mm, 38mm, 75mm, 90mm | Customizable according to order requirements |
Collation Strip | 50 Screws/Strip, Plastic Material | 100 Screws/Strip | Tough, low-temperature resistant, no breakage |
Drive Type | PH2 Phillips Slot | Pozidriv, Hex Socket | Anti-slip, high torque resistance |
Head Type | Bugle Head | Countersunk Head | Flush with gypsum board, easy for finishing |
Comparison: Collated Drywall Screws vs Regular Drywall Screws
Comparison Item | Collated Drywall Screws | Regular Drywall Screws |
|---|---|---|
Installation Efficiency | High (3-5 times faster), continuous feeding | Low, manual single-screw feeding |
Construction Labor Cost | Low, reduces 1-2 workers per team | High, requires more manual operation |
Waste Rate | ≤1%, no jamming, precise positioning | 5-8%, easy to slip or misplace |
Applicable Scenarios | Large-area projects, batch construction | Small-scale repair, local modification |
Compatibility | Compatible with collated screw guns | Manual or common electric screwdrivers |
Application Scope
- Indoor partition wall and ceiling gypsum board installation
- Bulk decoration of shopping malls, hotels, office buildings and residential communities
- Prefabricated buildings, light steel villas and modular construction
- Workshop, warehouse ceiling and wall fixing projects
- Auxiliary fixing of light materials such as color steel plates and aluminum gussets
Why Choose Our Collated Drywall Screws?
- Strict Quality Control: Quenched and tempered, with standard hardness (surface HRC45-52), no breakage or slip during installation.
- High-Quality Collation Strip: Tough plastic material, resistant to low temperature and impact, no jamming during continuous feeding.
- Precise Dimensions: Accurate thread and diameter, stable engagement with studs, strong tensile force and holding power.
- Customization Service: Support customized specifications, surface treatment, packaging and collation strip capacity to meet export and bulk purchase needs.
- Export-Oriented: Complies with international standards, popular in Europe, America, Southeast Asia and Middle East markets, with competitive factory price.
- Complete Certification: Provide test reports and quality certificates as required, facilitating customs clearance and market access.
Slogan
Faster Installation, Stronger Fastening, Better Quality — Your Trusted Collated Drywall Screws Supplier for Global Export.
